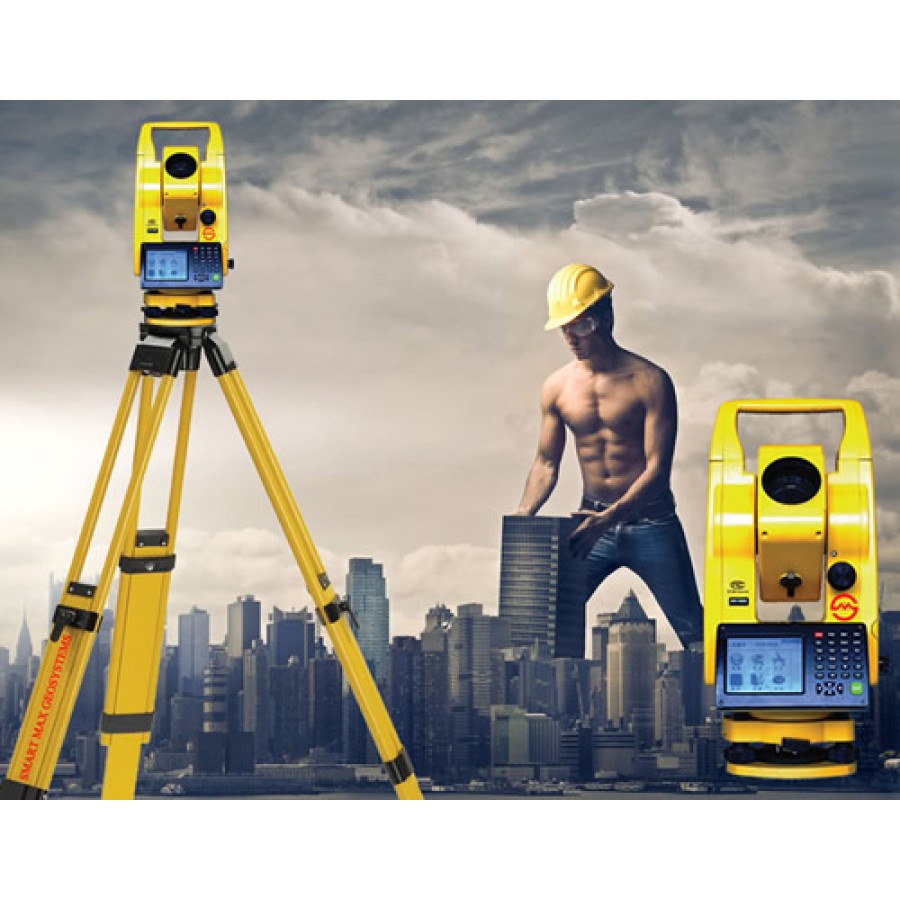

Smart Max Geosystem DTM-952R 2 Second Windows CE Total Station
- Brand: Smart Max Geosystems
- Product Code: DTM-952R
- Availability: 10 - 14 Working Days
- Rp.30,500,000
Tags: Nikon, DTM, Total Station
Features:
- Windows CE 6.0 operation System
- Color Touching Screen
- Reflectorless 300m/500m
- Absolute Coding Angle Measurement
- Excellent Functionality
- RS232, USB and SD Card
- 1G RAM
- Dual-axis Compensator
What's in the Box:
- (1) Smart Max Geosytem DTM-952R 2 Second Windows CE Total Station
- (1) Tribrach
- (1) Plastic carrying case
- (1) Clip-on battery holder
- (1) 100V/240V AA battery charger
- (1) Plug adapter set
- (4) Set of AA Ni-MH rechargeable batteries
- (1) User Manual
- (1) 2-year manufacturer's warranty
Specifications:
- Measuring Method/Reading System: Incremental encoder; Detection Method: Photoelectric; Minimum Reading: 1-second/5-second/10-second; Accuracy: 3-accuracy; Diameter of Circle: 88 mm (3.46 in).
- Distance Measurement; Unit of Measure (distance display): m/ft; EDM Accuracy (Precision): ±(3+2 ppm × D) mm; Minimum Reading: 328 ft
- Tilt Sensor/Compensator: Range: ± 3; Type: Single-axis; Method: Liquid-electric detection; Setting Accuracy:
1 arcsec - Battery/Power: Power Source: Four rechargeable AA Ni-MH batteries; Battery Life: 15 hours; Battery Life Alert: yes
- Optical Plummet: Image: Erect; Magnification: 3x; Field of View: 5 degrees; Focus Range: 0.5 m to infinity
- Level:Plate/Tubular Bubble Vial: 30 seconds per division/(2 mm); Circular Bubble Vial: 10 minutes per division/(2 mm)
- Telescope; Length of Tube: 158 mm (6.2 in); Image: Erect; Diameter of Objective Lens (Aperture): 45 mm (1.77 in); 50 mm (1.97 in) EDM; Magnification: 33× (21×/41× with optional eyepieces): Field of View: 1 degree 20 arcmin; Resolving Power: 2.5 arcsec; Minimum Focus Distance: 1.5 m (4.92 ft)
- Display and Keypad: Type: Black and white LCD; Sides: Dual; Keys: Full numeric; Backlight: yes; Pixels;128 × 64 pixel
- Temperature: Operating: –4 °F to +122 °F (–20 °C to +50 °C)
- Measurement Range (under fair weather conditions): Single Prism: 2,300 m (7,540 ft); Triple Prism: 3,000 m (9,840 ft); Mini Prism: 1,200 m (3,930 ft); Reflector Sheet: 100 m (328 ft)
- Interface: Pin Port RS-232C
- General: Weight: 11 lbs (4.9 kg); Dimensions: 6.6 in × 6.8 in × 13.2 in (16.8 cm × 17.3 cm × 33.5 cm); Warranty: 2-year; Protection Class: IP55 (protected against dust and water jets); Internal Memory: 10,000 points; Software: Nikon Survey.
