HY1601 Echo Sounder System, based on the computer platform, with DSP and digital imaging technology, embedded industrial control system and data acquisition software, is a portable and integrated digital echo sounding system. Its main features are as follows: Standard computer for easy operation interface and data storage, advanced bottom digitizer, internal large storage of data to file with time reference, digitized depth, position heave and annotations and it can compatible with all survey software like HYPACK, EIVA and any other software package. It is a perfect choice for surveying in the river, lake and ocean.

Features:

• Based on the computer platform
• TVG/AVG dynamic adjustment, reinforced anti- jamming ability
• Low noise receiving ability and space filter, Time filter adjustment
• High speed USB interface, huge storage capacity

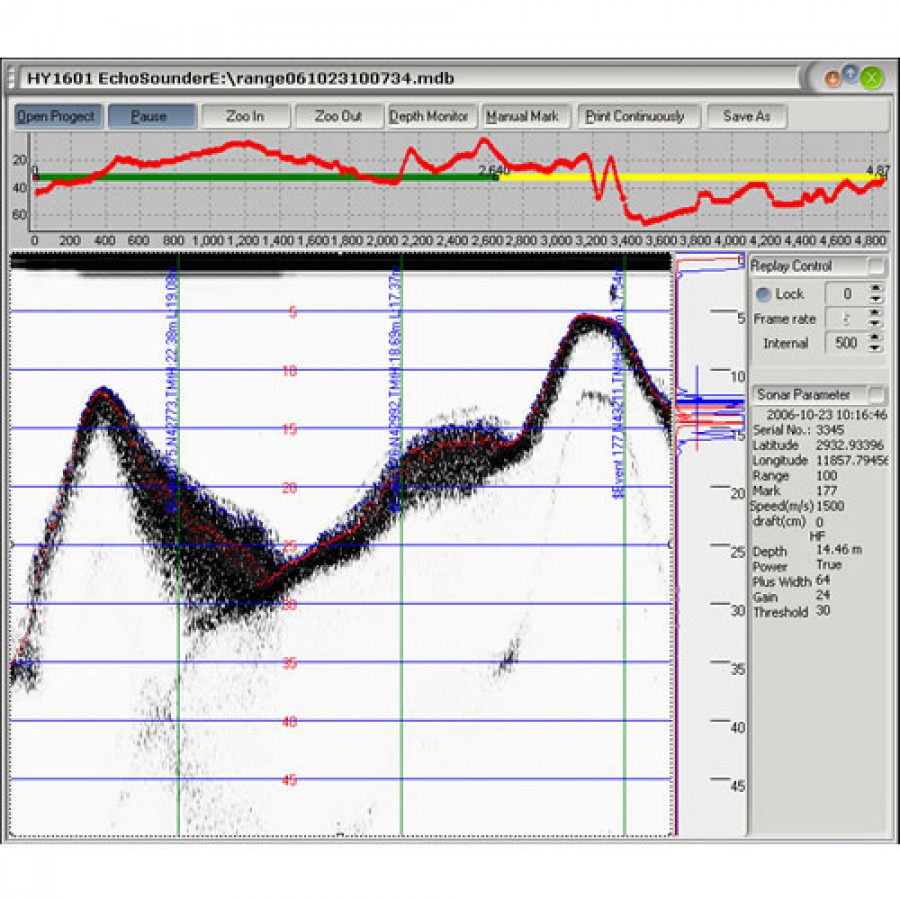

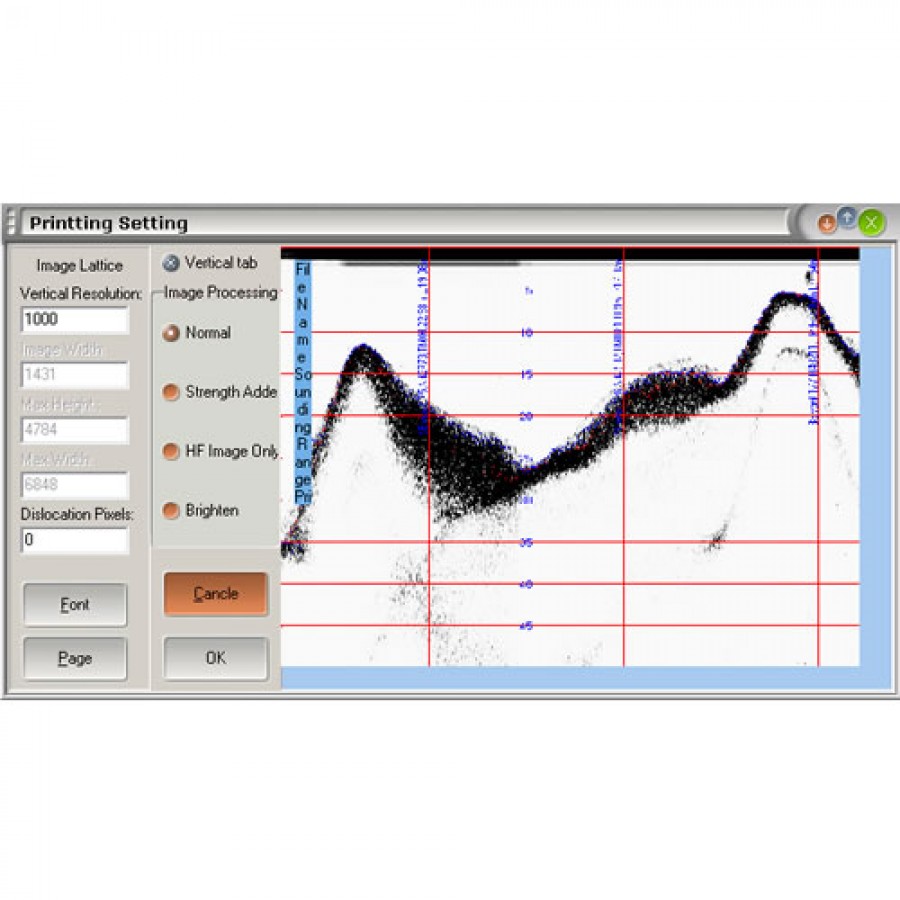

• Echogram output for real time display, storage, playback and printing
• Multi-ports communication for GPS, motion sensors and so on
• Bundled data acquisition software like HYPACK, EIVA.
• AC/DC Power supply

What's in the Box:

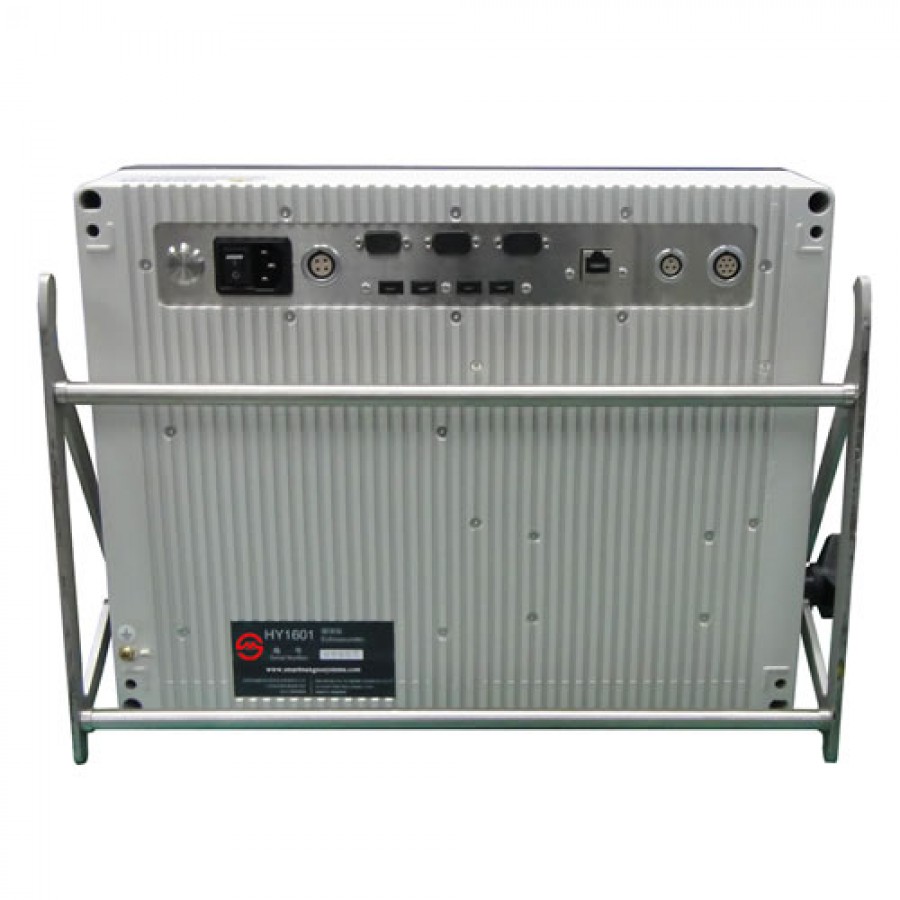

• (1) Smart Max Geosystem HY1601 PC Platform Digital Echosounder
• (1) Tranducser

• (1) Manual

Specifications:

• Frequency:  208KHz
• Transducer Beam: 208KHZ, <= 8 degrees
• Depth range: 0.3m-300m @ 208KHZ
• Accuracy: 0.01m ± 0.1% @ 208K
• Output power: 200W @ 208K
• Input Power: 22-31V DC or 180-260V AC
• Consumption Power:100W
• Recorder: Large capability hard disk storage
• Composition: Main Unit
• Dimensions: 400 × 130 × 310mm
• Weight:12kg
• Transducer: Weight: 1.5kg;Cable Length: 10m (adjustable)
• Supporting Tube: Dimensions: 3 × 0.7m; Weight: 5kg
