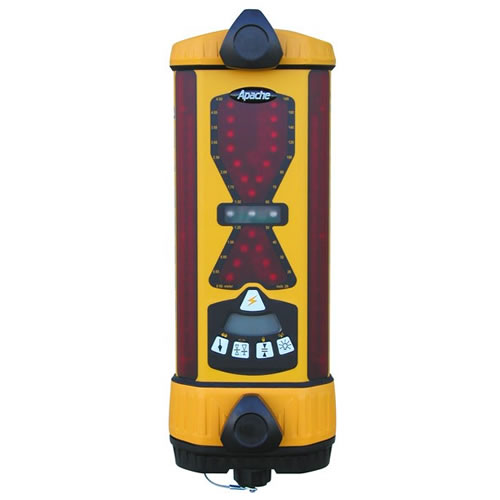

The Seco Bullseye 6 Machine Control Laser Detector is used with grading and excavating machinery, such as dozers, graders, scrapers and box blades. It features an LCD display, 360-degree laser reception, four accuracy settings, eight display channels, larger detection height, and built-in plumb indicator and angle compensation. It works with all red-beam rotary laser levels and comes in red with alkaline batteries.
Plumb Indicator and Angle Compensation For quick and accurate grade checking for excavators and backhoes, the Bullseye 6 laser receiver features patented angle compensation which automatically calculates and corrects the grade display for the angle of the dipper arm. It also has an integrated plumb indication for quick and accurate grade checking.
Larger Detection Height The Bullseye 6 offers 8.75-inch detection height, keeping you in the laser beam longer. Regardless of your application, from rough grading to fine grading, display to automatic, this Seco machine control receiver ensures more grade information.
Super Bright LEDs Adjustable, super-bright LEDs and LCD display provide you with clear viewing to match ambient lighting conditions. In addition, moving and getting back in the beam is easy with eight channels of grade information and a directional out-of-laser beam indicator.
Choice of Accuracy With four selectable accuracies – superfine, fine, medium and coarse, you can work to the tolerances demanded by the job from rough grading to final finishing for maximum flexibility. This machine mounted laser detector also features center and offset on-grade that provides additional above grade information for productive excavation.
Mounting Knobs The large front-facing knobs allow for quick and hassle-free installation to a round pipe, square tubing, or magnetic mount.
Longer Working Hours With an automatic shutoff feature after 75 minutes of inactivity, the Bullseye 6 conserves power and works up to 75 hours using four alkaline batteries.Features:
- Four selectable accuracies - Angle compensation indicator - Built-in plumb indicator - 360-degree reception angle - 8 display channels - 8.75-inch capture height - Center and offset on-grade - Super bright LEDs - Automatic shutoff - LCD display - 75-hour battery life - Aluminum cast housing

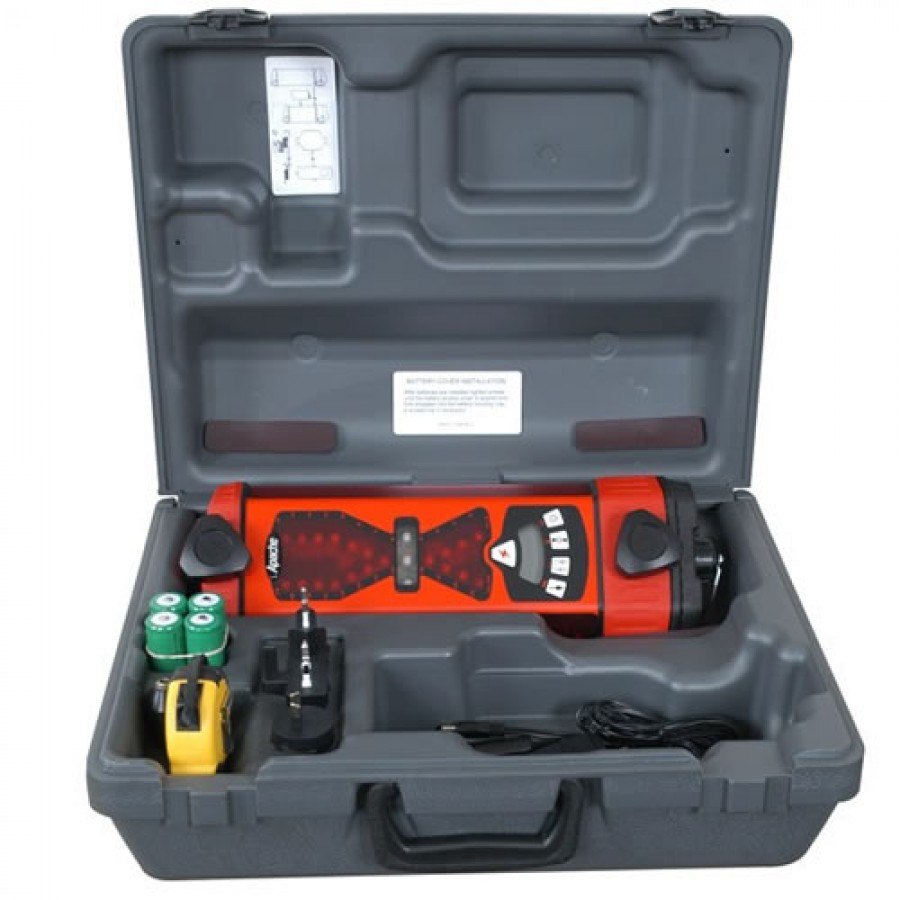

What's in the Box:
- (1) Seco Bullseye 6 Machine Control Laser Detector Red ATI991320-02 - (1) Hard carry case - (4) C alkaline batteries - (1) User manual
Brochure/Datasheet Instruction manualCatatan: Harga tidak mengikat, sewaktu waktu bisa berubah tanpa pemberitahuan dahulu
