Introducing our new multibeam echo sounder: the Teledyne Odom Hydrographic MB1. Designed and manufactured entirely within the Teledyne Marine group to meet the growing needs of hydrographic professionals that are looking for a low-cost shallow-water multibeam echo sounder.
Using both amplitude and phase bottom detection, the MB1 is capable of sounding a swath of up to 120° in over 120m water depth. With 24 bit raw data and a dedicated projector, both raw water column and seabed data can be collected within the controller software. The new and improved Real Time Appliance (RTA) improves time synchronization on all of the sensors necessary for surveying down to 0.1ms. New options include a fully integrated GPS heading system built into the RTA and a TSS motion sensor built into the sonar head. Teledyne Impulse Titan® Series connectors are used for quick dependable data and power connection.
What's in the Box:
Specifications:
Using both amplitude and phase bottom detection, the MB1 is capable of sounding a swath of up to 120° in over 120m water depth. With 24 bit raw data and a dedicated projector, both raw water column and seabed data can be collected within the controller software. The new and improved Real Time Appliance (RTA) improves time synchronization on all of the sensors necessary for surveying down to 0.1ms. New options include a fully integrated GPS heading system built into the RTA and a TSS motion sensor built into the sonar head. Teledyne Impulse Titan® Series connectors are used for quick dependable data and power connection.
Features:
- Operating frequency from 170 to 220 kHz
- 120 degree swath coverage
- Up to 512 beams
- Phase and amplitude bottom detection
- Up to 240m water depth sounding
- Titanium and Acetal construction
What's in the Box:
- (1) MB1 multibeam sonar head
- (1) Cable Assembly, MB1 to RTA, 15m
- (1) Case, Transit for MB1
- (1) Real Time Appliance for MB1
- (1) DC Power cable
- (10) Cable, Ethernet Cat 5 Crossover
- (1) Manual on CD - Odom products
- (1) Case, Transit for RTA
- (1) Fuse, 5 Amp for RTA
- (1) Teledyne Odom’s Windows based software
Specifications:
- Frequency (KHz): User-selectable, 170–220
- Range Resolution: 3.6cm
- Pulse: Width User-selectable, tied to range
- A/D: 24 bit
- Maximum Ping: Rate 60Hz
- Number of Beams: User-selectable, 10-512
- Swath Width: User-selectable, 10°-120°
- Beam Spacing: User-selectable, 0.23°-12°
- Maximum Sounding Depth (Nadir): 240m
- Bottom Detection Method: Amplitude & Phase

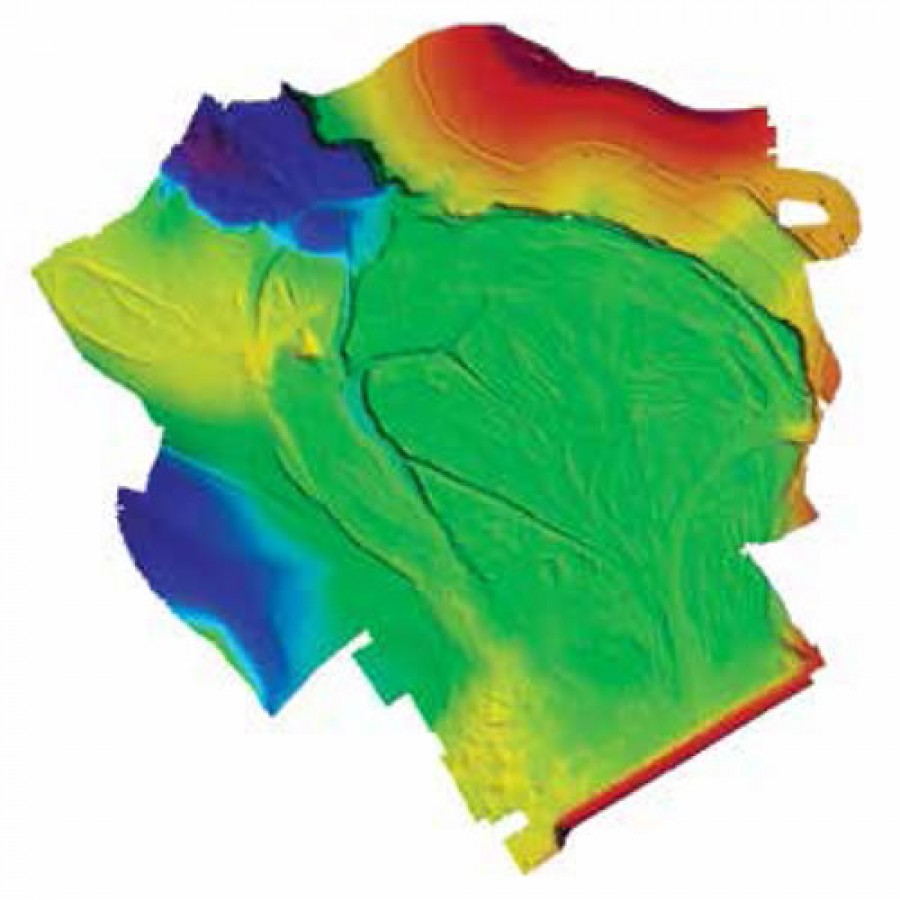

- Data Products: Bathymetry, water column backscatter, snippets, sidescan, real time uncertainty
- Environment : Maximum Deployment Depth: 100m; MB1 Sonar Operating Temperature: -5 to +35°C; MB1 Sonar Storage Temperature: -20 to +55°C; RTA Operating Temperature: -5 to +50°C; RTA Storage Temperature: -20 to +65°C; Dry Weight: 10.2kg/22.5lbs transducer only ; 11.3kg/24.9lbs with Digibar V attached; Weight in Water: 4.3kg/9.5lbs transducer only; 5kg/11lbs with Digibar V attached
- Power Requirement: 12–30VDC; 110-240VAC with included power supply
Power Consumption: 34W - Software Teledyne Odom’s Windows based software included: IMAGE - Control, Data Display and Export;
- Dimensions Head: 267mm (10.51in) L, 152mm (5.98in) W, 146mm (5.75in) H
RTA: 286mm (11.25in) L, 305mm (12.00in) W, 133mm (5.25in) H
