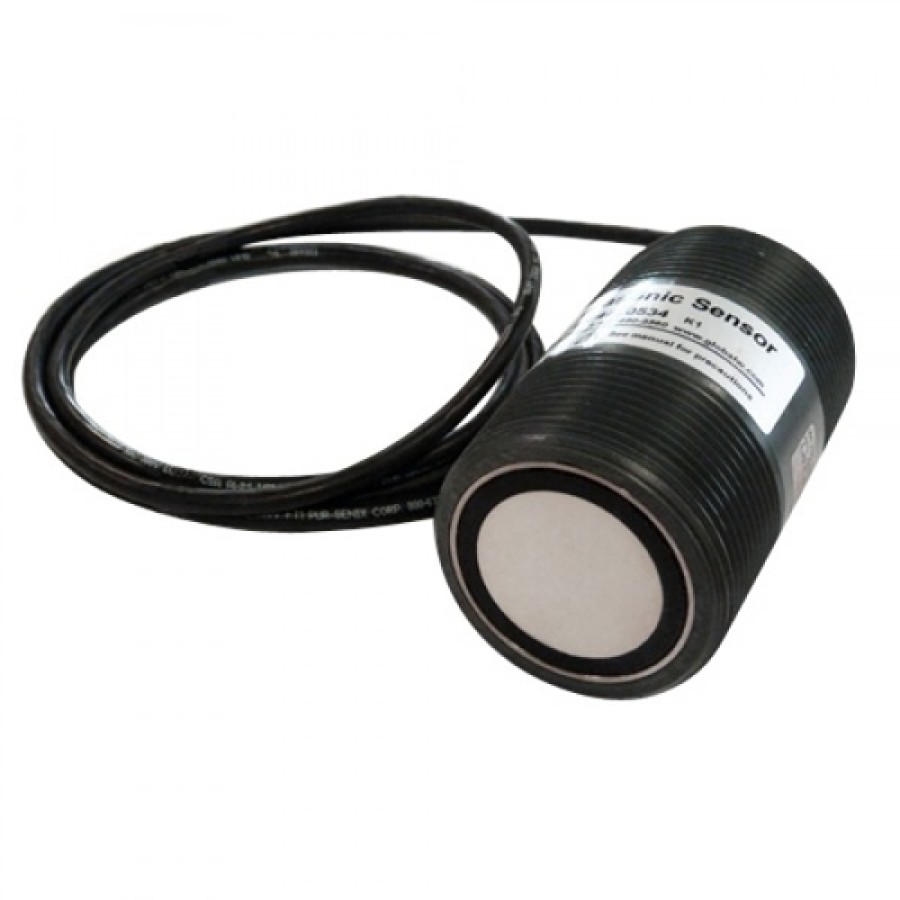

Global Water WL705-048 Ultrasonic Water Sensor, 0-48 ft Range wth 6 ft Cable

Brand: Global Water Instrumentations, Inc.
Product Code: AQS048
Availability: 10 - 14 Working Days

Rp.30,600,000

Qty

Description
Reviews (0)
Related Products (3)

The WL705 Ultrasonic Water Level Sensor uses the latest ultrasonic distance measuring technology for accurate non-contact water level monitoring. The ultrasonic water level sensors contain a rugged transducer in a stainless steel sealed housing for long life and provides an industry standard 4-20 mA output. There are three ultrasonic water level sensor ranges available including 3 ft, 12 ft, and 48 ft to meet a wide variety of applications. The unique 3 ft range ultrasonic water level sensor is ideal for measuring flow in small flumes and weirs. The 12 ft and 48 ft ultrasonic water level sensor ranges are best for measuring river, lake and tank levels and for measuring open channel flow in larger flumes. Ultrasonic water level sensor installation is simple and requires no programming or calibration. No maintenance is required for the ultrasonic water level sensors. The WL705 Ultrasonic Level Sensors are rugged, reliable and completely weatherproof. The ultrasonic water level sensors are ideal for sewer or wastewater applications. The ultrasonic water level sensors are easy to mount, come with a 6 ft standard cable and complete instructions. The ultrasonic water level sensors are easy to interface to all PLC's, SCADA and telemetry systems with its simple 3-wire 4-20 mA output. The WL705 Ultrasonic Water Level Sensor is compatible and provided optionally with the Global Water FC220 Open Channel Flow Monitor and the PC320 Process Controller (for water level control)

Includes:

Global Water WL705-048 Ultrasonic Water Sensor, 0-48 ft Range wth 6 ft Cable

Specifications:

Ranges: 0.33 to 3 ft; 0.33 to 12 ft; and 1 to 48 ft
Resolution: 0.009 in, 0.035 in, and 0.141 in
Repeatability: Greater of ±0.03 inches (0.76 mm) or 0.1% of range @ constant temperature
Accuracy: Better than 0.5% of range @ constant temperature; affected by temperature gradients, target echo strength, and speed of sound in vapors
Transducer Type: Ruggedized piezoelectric
Beam Angle: 12° conical shaped pattern
Power: 3 and 12 ft rng: 10 to 30 VDC @70 mA max; 48 ft range: 10 to 30 VDC @40 mA max

Output: 4-20 mA (4 mA is minimum water level and 20 mA is maximum water level)
Update Rate: 50 ms
Warm Up Time: 15 seconds
Operating Temperature Range: -40° to 158°F (-40° to 70°C)
Humidity: 0-100% (avoid heavy condensation)
Housing Material: 303 stainless steel
Mounting: 3 and 12 ft rng: 30x1.5 mm threaded housing; 48 ft range: 2.5 inch Male NPT threads

Dimensions: 3 and 12 ft rng: 4.062 in. long x 1.05 in. dia. (103.2 L x 26.7 Dia mm); 48 ft range: 4.75 inch long x 2.375 inch dia. (121 L x 60 Dia mm)

Weight: 3 and 12 ft rng: 12.7 oz (0.36 g); 48 ft range: 25.9 oz (0.73 kg)

IP rating: IP 68, Nema 4X; Certifications: CE
