Compact, robust, transportable:
The Q-Eye M III is characterised by its compact, impact-resistant plastic housing which can be placed directly into the existing pit constructions or switch cabinets. The 5.8 kg light-weight measuring system can be transported between the measuring points without any strenuous effort.

Self-sufficient:
The Q-Eye M III is powered by six exchangeable, commercially available 1.5 V single cells, which ensure a long service life of about 70 days with a measuring interval of 5 minutes.

Small, aerodynamic, precise:

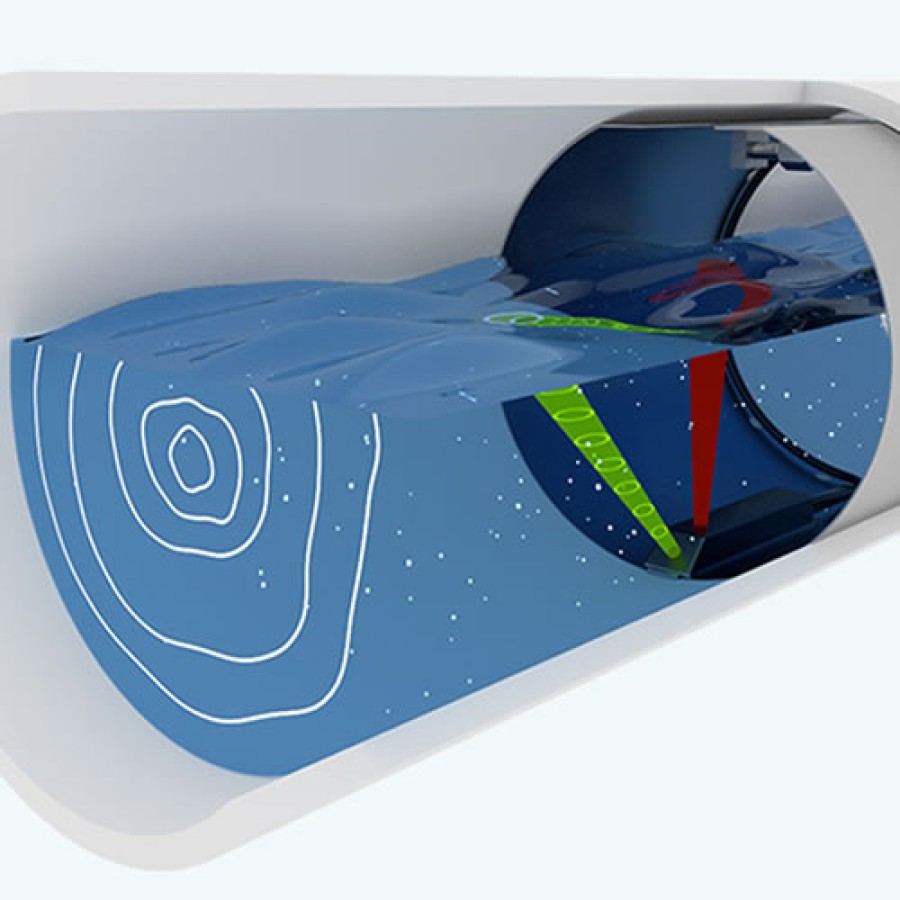

The PSC type Pulse Doppler Sensor impresses with its ultra-compact, streamlined design. Advantage: The flow profile is hardly influenced by the sensor; no or only small deposits are formed and flow measurements are possible starting at 4 cm water level at low flow rates. Water level and flow rate are recorded by the PSC-sensor with high accuracy (+/- 1 %) and reliability.

Simple installation and commissioning:
The Doppler sensor is typically mounted on a mounting plate or a clamping ring to ensure an easy and quick installation in the measuring section. Adjustable tension rings for pipe diameters of DN500-1450 enable flexible use at different pipe cross-sections without the need to drill through the pipes. The programming of the Q-Eye M III is also very simple: enter the desired measurement interval, store the measuring cross-section, start the measurement and there you go.

Last but not least:
Optionally, the Q-Eye M III can be equipped with a built-in antenna connector with a GSM/ GPRS mobile modem. Current measurement data are thus always available for example in connection with the SEBA Hydrocenter . In addition, the measuring point operator is informed via an SMS if any pre-defined events occur. A pulse output provides intelligent control of the sampler. In addition, for larger measuring ranges (> 1.30 m of the water level) or unfavourable installation conditions, an external pressure sensor, such as the SEBA-pressure probe type DS 22can be connected.
