Rain gauge with tipping bucket, area 400 cm2 , for temperatures from +4°C to +60°C; resolution on request, at the time of placing the order 0.1 - 0.2 or 0.5 mm. Output contact normally closed

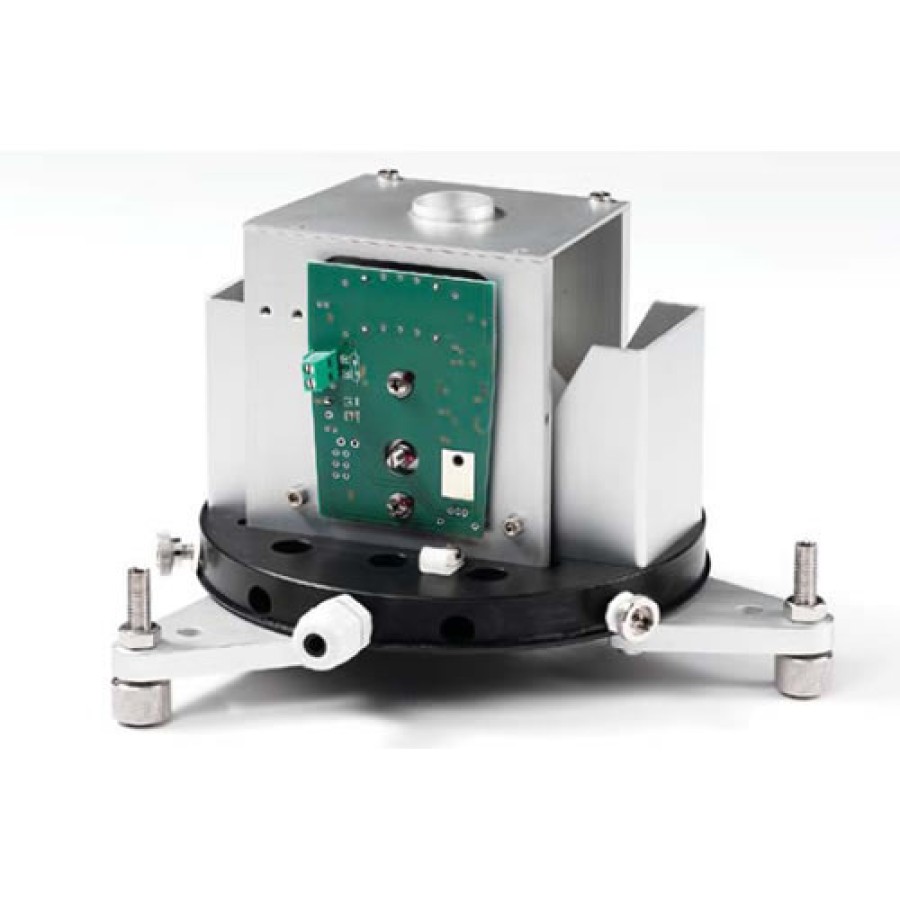

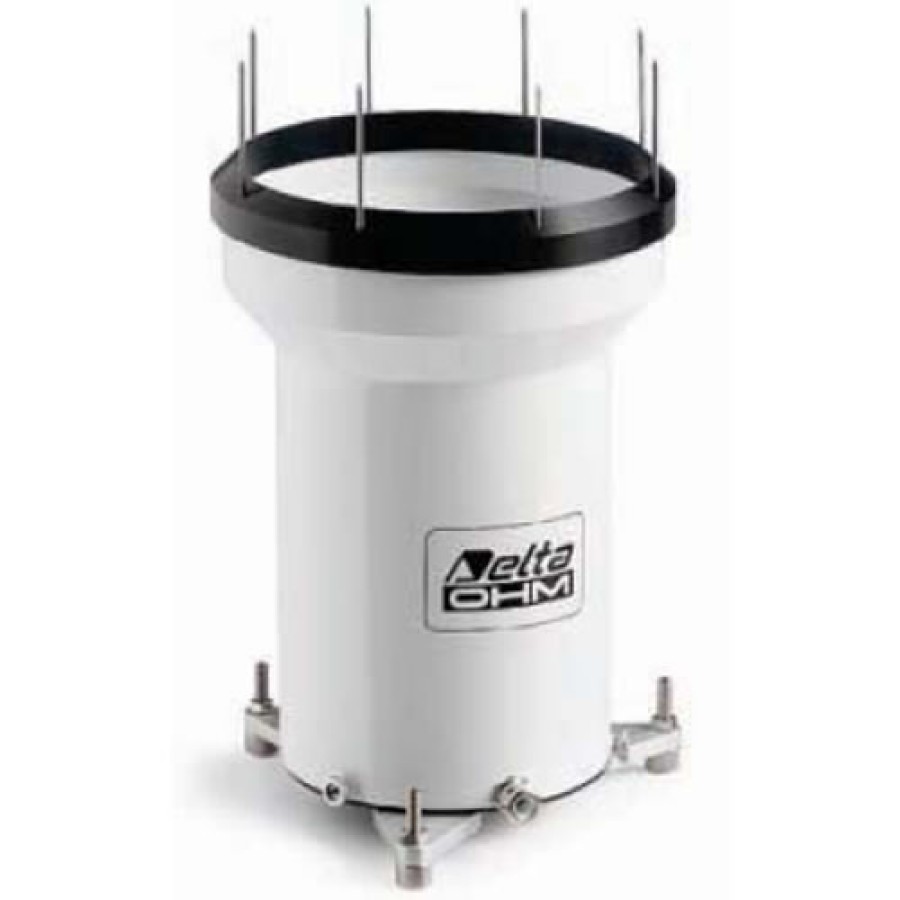

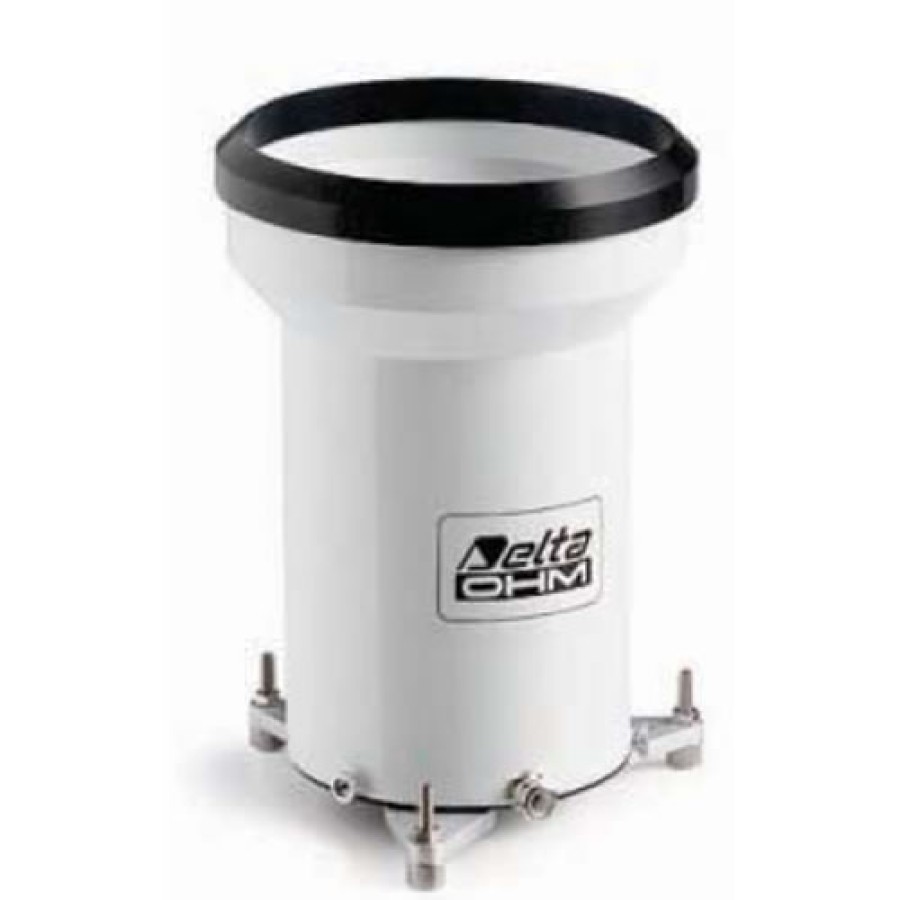

The HD2013 is a reliable and sturdy bucket rain gauge, built entirely from corrosion resistant materials in order to guarantee its durability. So as to ensure accurate measurement even with low temperature climatic conditions or during and after precipitations of snow, a version with a heater which is automatically activated around +4°C has been developed so that snow deposits and ice formations are prevented. The rain gauge is formed by a metal base on which a tipping bucket is set. The rain collector cone, fixed to the aluminium cylinder, channels the water inside the tipping bucket: once the predefined level is reached, the calibrated bucked  rotates under the action of its own weight, discharging the water. During the rotation phase, the usually closed reed contact opens for a fraction of a second, sending an impulse to the counter.  The quantity of rainfall measured is based on the count of the number of times the bucket is emptied: the reed contacts, usually closed, open at the moment of  the rotation between one bucket’s section and the other. The number of impulses  can be detected and recorded by a datalogger such as the HD2013-D DeltaOhm or by a pulse counter.

Includes:

• (1) Delta Ohm HD2013 Rain Gauge
• HD2013D, Rain indicator datalogger with LCD display(Optoinal
• HD2003.77/40: Flange to fasten the datalogger to the support staff (Optional)


Specifications:

• Power: --.
• Type of output contact:  NC contact (opens during commutation).
• Resolution:  0.1 - 0.2 or 0.5 mm/commutation (on request at the time of placing the order).
• Precision : ± 2% between 20÷300 mm/h.
• Operating temperature range:  +4°C … +60°C.
• Heater intervention temperature: --- .
• Protection degree:  IP67.
• Collector area: 400 cm2.
